Change an SVG’s color in your browser

Open a simple SVG in Vector, change its fill, export as SVG and reopen the result. Download both the original and checked output.

By Boreal Studio · Published 11 October 2026

Open Vector

Start with a shape you can recognize

This example changes one blue rectangle to orange and downloads a new SVG. The sample has a 128 × 96 viewBox, one shape and no fonts, filters or external images. It lets you check a simple vector edit before trying a more complex logo or a generated SVG.

Original blue rectangle in a 128 by 96 SVG — Blue SVG input
Download blue svg input

Exported SVG containing the same rectangle in orange — Orange SVG output
Download orange svg output

Open the SVG in Vector

Download the blue input, then choose File → Open in Vector. The editor currently displays its upstream VectorCraft name. Our screenshots use English: if your menus use another language, choose VectorCraft → Interface Language → English. If the renderer cannot start, try Vector with WebGL.

Some non-English labels have missing glyphs in this Preview. Use English menus for this walkthrough; additional fonts and complex SVGs still need checking.

The blue SVG rectangle opened in the actual Vector editor — A simple SVG opened at the editor’s fitted zoom.

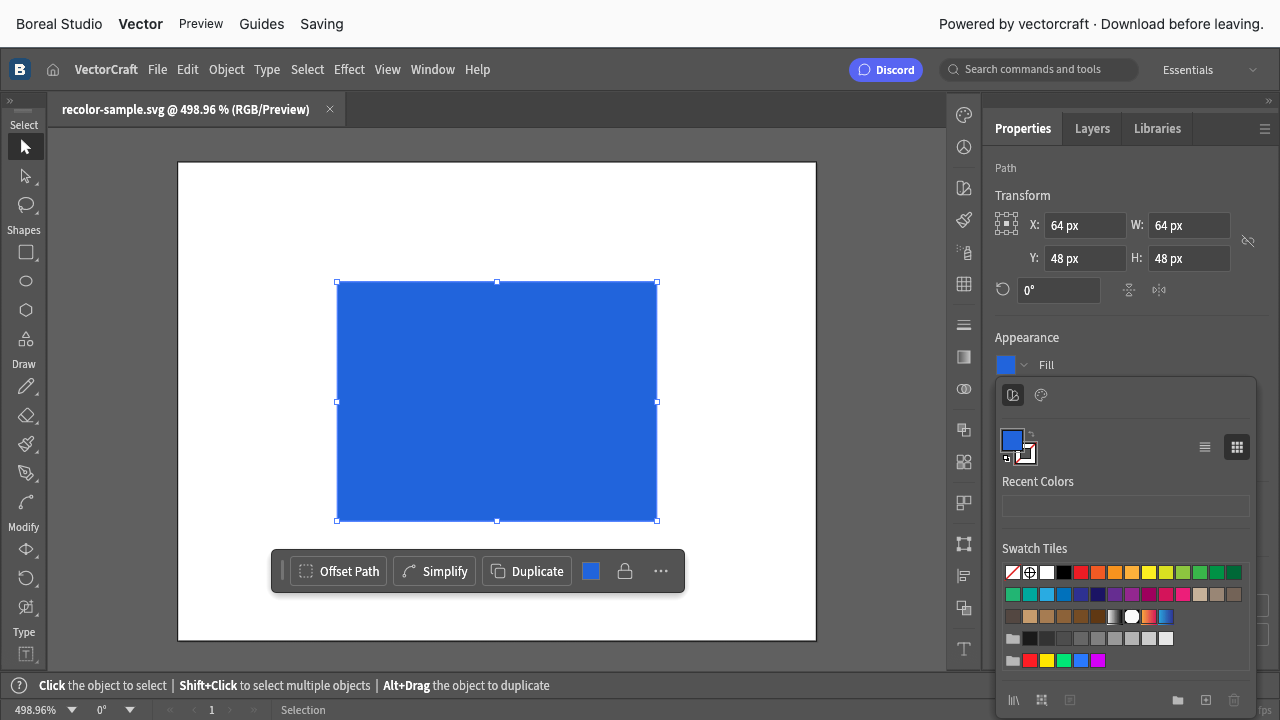

Select the rectangle and change its fill

Use the Selection arrow and click the rectangle. You should see a selection box around it. In Properties → Appearance, click the blue Fill swatch, then choose the first orange tile after the dark red tile in the top row. Click outside the popup to close it. Our chosen tile exports as #f15a24.

Export as SVG and reopen the download

Choose File → Export → Export As SVG…. For this sample, leave SVG 1.1, Internal CSS and Use Artboards at their displayed defaults, then choose OK. Find the downloaded .svg file. It may have the same filename as your input; keep them in separate locations or rename the edited copy.

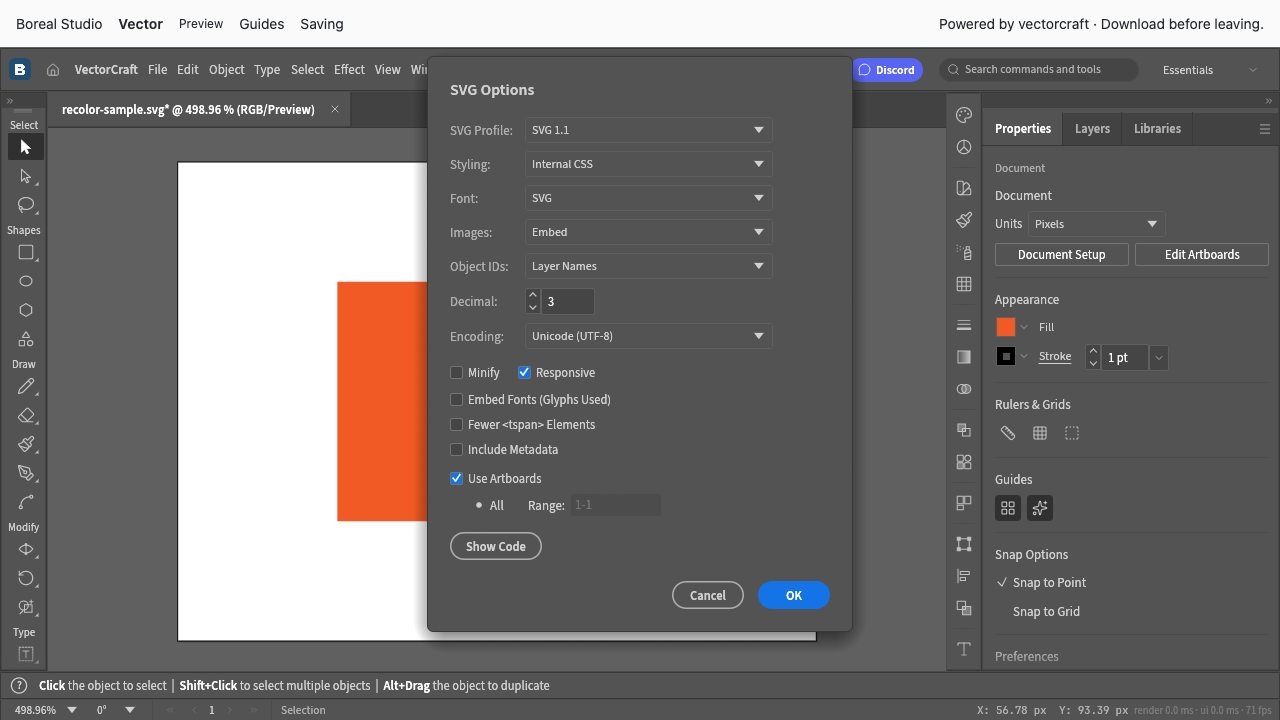

SVG Options dialog with SVG 1.1, Internal CSS and Use Artboards selected — The actual SVG export options used for the sample.

Reopen the download in Vector and in a browser. The rectangle should be orange, with the same proportions and position. Our output keeps the 128 × 96 viewBox and an editable path; the original rectangle element becomes a path during export. It is not a PNG embedded in an SVG.

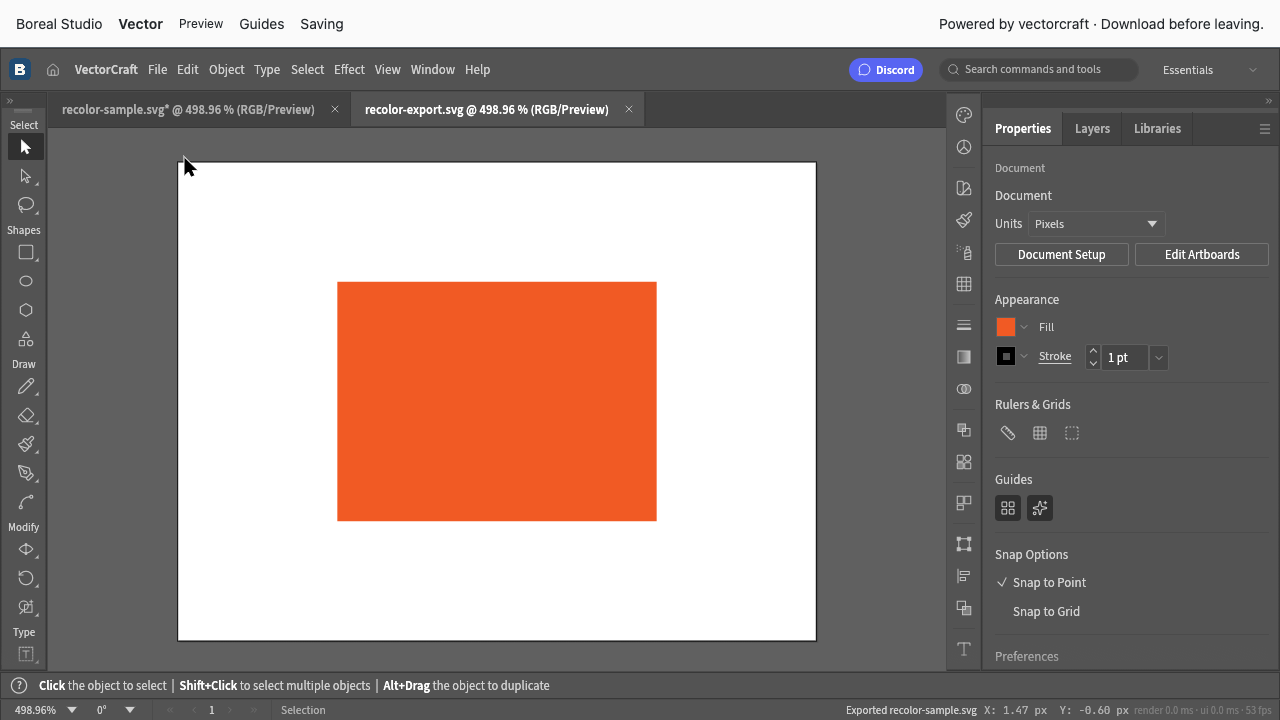

Downloaded orange SVG reopened in Vector — The exported SVG reopened as a vector shape.

Why a more complex SVG may need extra checks

If clicking changes the wrong object, check whether your artwork is grouped and select the intended path. Text can depend on fonts; linked images, filters, masks and CSS can behave differently after import. Check the downloaded file in its final destination, not only the editor canvas.

Checked locally and on studio.borealbit.com with VectorCraft 0.8 in Chrome using software WebGL. This one-shape workflow does not establish complex SVG or Illustrator compatibility. Keep the original SVG if the import or export differs.
